LTECH Intelligent dimmable led driver have excellent performance:

  • Support 0/1-10V, 10V PWM, Push Dim.
  • Dimming range:0~100%, LED start at 0.1% possible.
  • Suitable for indoor environments.

Certification:   CCC   TUV   RCM   CB   CE   ENEC   UL   FCC   KC   EAC   UKCA   BIS   ERP   SAA    KCC    BQB    EMC    SRRC    CQC
CV 0/1-10V Low Voltage Driver

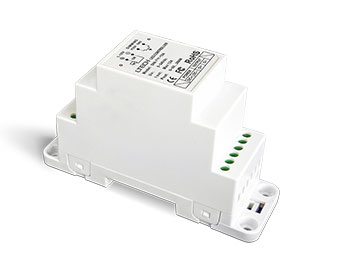

  • CV 0-10V 1-10V Dimming Driver DIN-711-12A
    Input signal 0-10V 1-10V 10V PWM or push button
    Input voltage DC12V~DC24V
    Max load current 12A ×1CH  Max 12A
    Max output power 144W/288W(12V/24V)
    Dimming Range 0~100%

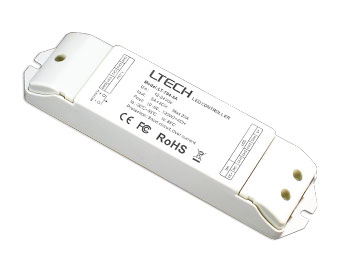

  • 4CH CV 0-10V 1-10V Dimming Driver LT-704-5A
    Input signal 0-10V, 1-10V, 10V PWM, push button
    Input voltage DC12V~DC24V
    Max load current 5A ×4CH  Max 20A
    Max output power 0-240W...480W
    Dimming Range 0~100%, LED start at 0.1% possible.
    working temperature -30℃~55℃
    Dimension L175×W44×H30(mm)
    Package Size L178×W48×H33(mm)
    Weight (G.W) 150g

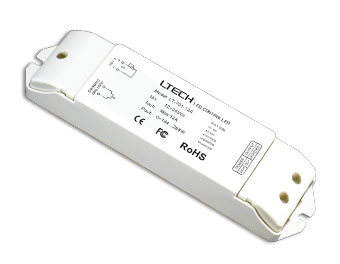

  • CV 0/1-10V Dimming Driver LT-701-12A
    Input signal 0-10V 1-10V 10V PWM or push button
    Input voltage DC12V~DC24V
    Max load current 12A ×1CH  Max 12A
    Max output power 144W/288W(12V/24V)
    Dimming Range 0~100%
    working temperature -30℃~55℃
    Dimension L175×W44×H30(mm)
    Package Size L178×W48×H33(mm)
    Weight (G.W) 130g

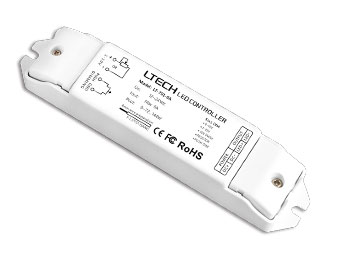

  • CV 0-10V 1-10V Dimming Driver LT-701-6A
    Input signal 0-10V 1-10V 10V PWM or push button
    Input voltage DC12V~DC24V
    Max load current 6A ×1CH  Max 6A
    Max output power 72W/144W(12V/24V)
    Dimming Range 0~100%
    working temperature -30℃~55℃
    Dimension L135×W30×H20(mm)
    Package Size L140×W34×H23(mm)
    Weight (G.W) 65g
