LTECH Intelligent dimmable led driver have excellent performance:

  • T-PWM digital dimming, maintains CRI (color rendering index).
  • Support 0/1-10V, RX, 10V PWM, Push Dim.
  • Dimming range: 0~100%, LED start at 0.01% possible.
  • Short circuit / Over-heat / Over load / Non-load protection.

Certification:   CCC   TUV   RCM   CB   CE   ENEC   UL   FCC   KC   EAC   UKCA   BIS   ERP   SAA    KCC    BQB    EMC    SRRC    CQC
CV 0/1-10V Dimmable Driver
  • 75W 24VDC CV 0-10V/1-10V Driver LM-75-24-G1A2
    Rubycon capacitor
    Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
    Input Voltage: 220-240Vac
    Power Factor:  PF>0.97/230Vac, at full load
    Efficiency: 92%
    Fluctuation Level: High frequency exemption level.
    Output Voltage: 24Vdc
    Output Current: Max. 3.125A
    Output Power: 0~75W
    Dimming Range: 0~100%, dimming depth: Max. 0.1%
    Certification: CCC,BIS,TUV,CE,RCM,CB,UKCA,ROHS
    Warranty: 5 years
  • 75W 12VDC CV 0-10V/1-10V Driver LM-75-12-G1A2
    Rubycon capacitor
    Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
    Input Voltage: 220-240Vac
    Power Factor:  PF>0.97/230Vac, at full load
    Efficiency: 91%
    Fluctuation Level: High frequency exemption level.
    Output Voltage: 12Vdc
    Output Current: Max. 6.25A
    Output Power: 0~75W
    Dimming Range: 0~100%, dimming depth: Max. 0.1%
    Certification: CCC,BIS,TUV,CE,RCM,CB,UKCA,ROHS
    Warranty: 5 years

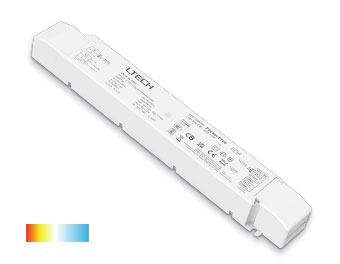

  • 75W 24VDC CV 0-10V/1-10V DIM&CT Driver LM-75-24-G2A2
    Rubycon capacitor
    Dimming Interface: 0-10V(1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT
    Input Voltage: 220-240Vac
    Power Factor:  PF>0.97/230Vac, at full load
    Efficiency: 92%
    Fluctuation Level: High frequency exemption level.
    Output Voltage: 24Vdc
    Output Current: Max. 3.125A
    Output Power: 0~75W
    Dimming Range: 0~100%, dimming depth: Max. 0.1%
    Certification: CCC,BIS,TUV,CE,RCM,CB,UKCA,ROHS
    Warranty: 5 years

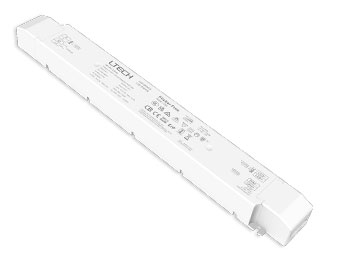

  • 150W 12VDC CV 0-10V Driver LM-150-12-G1A2
    Rubycon capacitor
    Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
    Input Voltage: 220-240Vac 200-280Vdc
    Power Factor:  PF>0.98/230Vac, at full load
    Efficiency: 92%
    Fluctuation Level: High frequency exemption level.
    Output Voltage: 12Vdc
    Output Current: Max. 12.5A
    Output Power: 0~150W
    Dimming Range: 0~100%, dimming depth: Max. 0.1%
    Certification: CCC,EAC,KC,TUV,RCM,CB,CE,ROHS,BIS,ERP,UKCA
    Warranty: 5 years

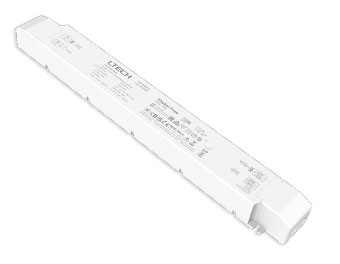

  • 150W 24VDC CV 0-10V Driver LM-150-24-G1A2
    Rubycon capacitor
    Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
    Input Voltage: 220-240Vac 200-280Vdc
    Power Factor:  PF>0.98/230Vac, at full load
    Efficiency: 93%
    Fluctuation Level: High frequency exemption level.
    Output Voltage: 24Vdc
    Output Current: Max. 6.25A
    Output Power: 0~150W
    Dimming Range: 0~100%, dimming depth: Max. 0.1%
    Certification: CCC,EAC,KC,TUV,RCM,CB,CE,BIS,ERP,ROHS,UKCA
    Warranty: 5 years

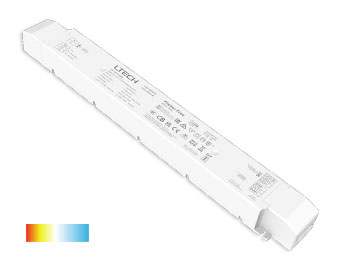

  • 150W 24VDC CV 0-10V/1-10V DIM&CT Driver LM-150-24-G2A2
    Rubycon capacitor
    Dimming Interface: 0-10V(1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT
    Input Voltage: 220-240Vac 200-280Vdc
    Power Factor:  PF>0.98/230Vac, at full load
    Efficiency: 93%
    Fluctuation Level: High frequency exemption level.
    Output Voltage: 24Vdc
    Output Current: Max. 6.25A
    Output Power: 0~150W
    Dimming Range: 0~100%, dimming depth: Max. 0.1%
    Certification: CCC,ENEC,EAC,KC,TUV,RCM,CB,CE,ROHS,BIS,ERP,UKCA
    Warranty: 5 years

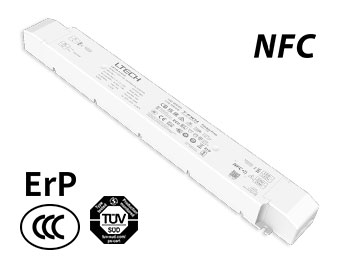

  • 240W 24V NFC CV 0/1-10V LED Driver LM-240-24-G1A2
    Rubycon capacitor
    Dimming Interface: 0-10V (1-10V, 10V PWM, RX),PUSH
    DC Voltage Range: 200-280Vdc
    AC Voltage Range: 198-264Vac
    Input Voltage: 220-240Vac
    Power Factor:  PF>0.98/230Vac (at full load)
    Efficiency: 94%
    Fluctuation Level: High frequency exemption level.
    Output Voltage: 24Vdc
    Output Current: Max. 10A
    Output Power: 0~240W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,BIS,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,ERP,ROHS
    Warranty: 5 years

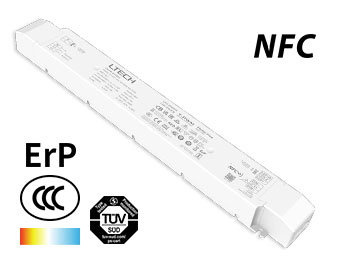

  • 240W 24V NFC CV 0/1-10V tunable white LED Driver LM-240-24-G2A2
    Rubycon capacitor
    Dimming Interface: 0-10V (1-10V, 10V PWM, RX),PUSH
    DC Voltage Range: 200-280Vdc
    AC Voltage Range: 198-264Vac
    Input Voltage: 220-240Vac
    Power Factor:  PF>0.98/230Vac (at full load)
    Efficiency: 94%
    Fluctuation Level: High frequency exemption level.
    Output Voltage: 24Vdc
    Output Current: Max. 10A
    Output Power: 0~240W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,BIS,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,ERP,ROHS
    Warranty: 5 years

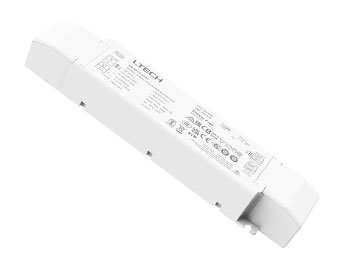

  • 36W 12VDC CV 0/1-10V Driver LM-36-12-G1A2
    Rubycon capacitor
    Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
    Input Voltage: 200-240Vac / 200-280Vdc
    Power Factor:  PF>0.95/230Vac , at full load
    Efficiency: 87%
    Fluctuation Level: High frequency exemption level.
    Output Voltage: 12Vdc
    Output Current: Max. 3A
    Output Power: 0~36W
    Dimming Range: 0~100%, dimming down to 0.1%
    Certification: CCC,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA,ROHS
    Warranty: 5 years

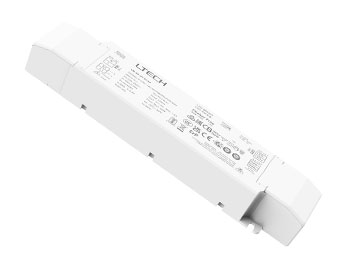

  • 36W 24VDC CV 0/1-10V Driver LM-36-24-G1A2
    Rubycon capacitor
    Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
    Input Voltage: 200-240Vac / 200-280Vdc
    Power Factor:  PF>0.95/230Vac , at full load
    Efficiency: 88%
    Fluctuation Level: High frequency exemption level.
    Output Voltage: 24Vdc
    Output Current: Max. 1.5A
    Output Power: 0~36W
    Dimming Range: 0~100%, down to 0.1%
    Certification: CCC,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA,ROHS
    Warranty: 5 years

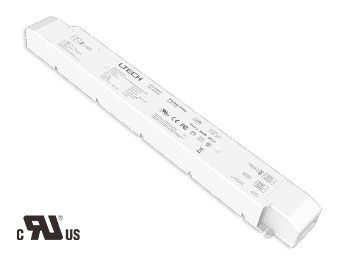

  • 100W 24VDC CV 0/1-10V Driver LM-100-24-U1A2
    Rubycon capacitor
    Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
    Input Voltage: 120-277Vac
    Power Factor:  PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (at full load)
    Efficiency: 93%
    Fluctuation Level: High frequency exemption level.
    Output Voltage: 24Vdc
    Output Current: Max. 4.17A
    Output Power: 0-100W
    Dimming Range: 0~100%, down to 0.1%
    Certification: FCC,CE,ROHS,UL
    Warranty: 5 years

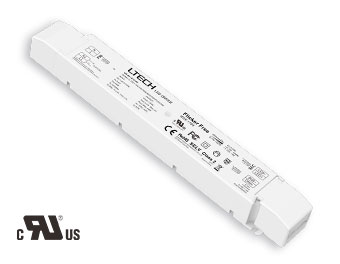

  • 60W 12VDC CV 0/1-10V Driver LM-60-12-U1A2
    Rubycon capacitor
    Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
    Input Voltage: 120-277Vac
    Power Factor:  PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (at full load)
    Efficiency: 90%
    Fluctuation Level: High frequency exemption level.
    Output Voltage: 12Vdc
    Output Current: Max. 5A
    Output Power: 0-60W
    Dimming Range: 0~100%, down to 0.1%
    Certification: FCC,CE,ROHS,UL
    Warranty: 5 years

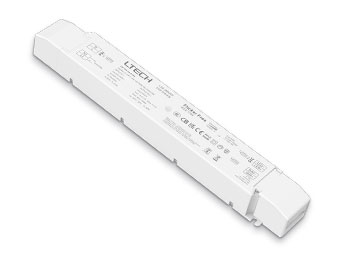

  • 100W 24VDC CV 0-10V/1-10V Driver LM-100-24-G1A2
    Rubycon capacitor
    Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
    Input Voltage: 220-240Vac
    Power Factor:  PF>0.98/230Vac, at full load
    Efficiency: 93%
    Fluctuation Level: High frequency exemption level.
    Output Voltage: 24Vdc
    Output Current: Max. 4.17A
    Output Power: 0~100W
    Dimming Range: 0~100%, dimming depth: Max. 0.1%
    Certification: CCC,TUV,CE,RCM,CB,UKCA,ROHS
    Warranty: 5 years

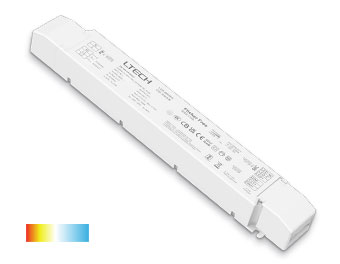

  • 100W 24VDC CV 0-10V/1-10V DIM&CT Driver LM-100-24-G2A2
    Rubycon capacitor
    Dimming Interface: 0-10V(1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT
    Input Voltage: 220-240Vac
    Power Factor:  PF>0.98/230Vac, at full load
    Efficiency: 93%
    Fluctuation Level: High frequency exemption level.
    Output Voltage: 24Vdc
    Output Current: Max. 4.17A
    Output Power: 0~100W
    Dimming Range: 0~100%, dimming depth: Max. 0.1%
    Certification: CCC,TUV,CE,RCM,CB,UKCA,ROHS
    Warranty: 5 years

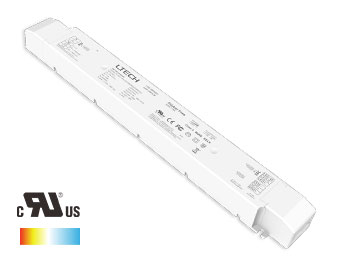

  • 100W 24VDC CV 0/1-10V Tunable White Driver LM-100-24-U2A2
    Rubycon capacitor
    Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM/CCT
    Input Voltage: 120-277Vac
    Power Factor:  PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (at full load)
    Efficiency: 93%
    Fluctuation Level: High frequency exemption level.
    Output Voltage: 24Vdc
    Output Current: Max. 4.17A
    Output Power: 0-100W
    Dimming Range: 0~100%, down to 0.1%
    Certification: FCC,CE,ROHS,UL
    Warranty: 5 years
