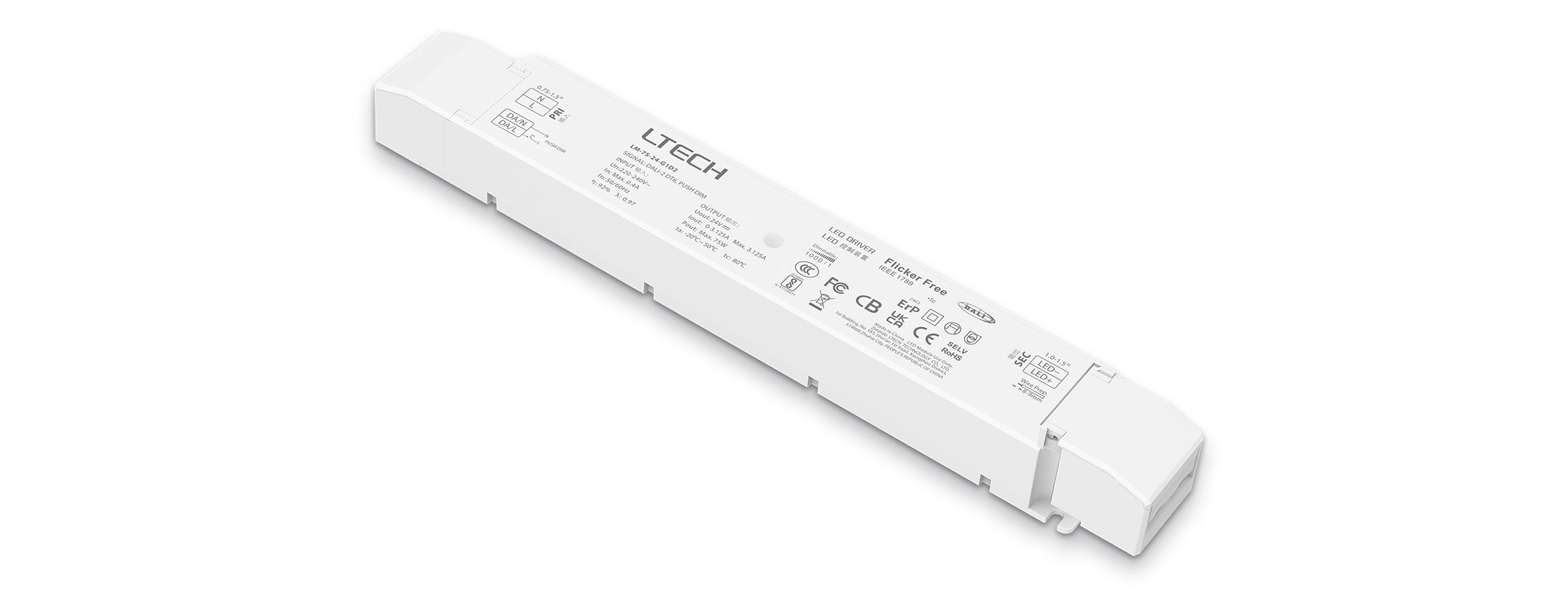

LM-75-24-G1D2 |
||
| Dimming Interface: | DALI (IEC62386), Push Dim | |
| Dimming Range: | 0~100%, LED start at 0.1% possible. | |
| Input Voltage Range: | 200-240Vac, 277Vac (for North America only) | |
| Power Factor: |
|
|
| Efficiency: | >91.5% | |
| Output Voltage Range: | 24Vdc ±0.5Vdc | |
| Output Power Range: | 1~75W | |
| Output Current: | Max. 3.12A | |
| Working Temperature.: | tc: 80℃ ta: -30 ~ 55℃ | |
| Dimension: | 292×43×30mm(L×W×H) | |
| Packing: | 296×44×33mm(L×W×H) | |
| Weight(G.W.): | 300g±10g | |
