LTECH Intelligent dimmable led driver have excellent performance:

  • T-PWM digital dimming, maintains CRI (color rendering index).
  • Support 0/1-10V, RX, 10V PWM, Push Dim.
  • Dimming range: 0~100%, LED start at 0.1% possible.
  • Multiple current, wide voltage, compatible with a variety of LED lights.
  • Short circuit / Over-heat / Over load / Non-load protection.
Adopt revolutionary T-PWM deep dimming technology

Certification：   CCC   TUV   RCM   CB   CE   ENEC   UL   FCC   KC   EAC   UKCA   BIS   ERP   SAA    KCC    BQB    EMC    SRRC    CQC    PSE
CC 0/1-10V Dimmable Driver
  • 12W 100-500mA NFC CC 0/1-10V LED driver SE-12-100-500-W1A
    SE-12-100-500-W1A
    Rubycon capacitor
    Dimming Interface: 0-10V (1-10V, 10V PWM, RX)
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load
    Efficiency: 84%
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 100-500mA
    Output Power: 0.9W~12.15W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,FCC,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ERP,ROHS
    Warranty: 5 years（Rubycon capacitor）
    12W 100-500mA NFC CC 0/1-10V LED driver SE-12-100-500-W1A
    Download Manual


  • 12W 100-500mA NFC CC 0/1-10V tunable white LED driver SE-12-100-500-W2A
    SE-12-100-500-W2A
    Rubycon capacitor
    Dimming Interface: 0-10V (1-10V, 10V PWM, RX)
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load
    Efficiency: 84%
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 100-500mA
    Output Power: 0.9W~12.15W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ERP,ROHS
    Warranty: 5 years（Rubycon capacitor）
    12W 100-500mA NFC CC 0/1-10V tunable white LED driver SE-12-100-500-W2A
    Download Manual


  • 20W 100-700mA NFC CC 0/1-10V LED driver SE-20-100-700-W1A
    SE-20-100-700-W1A
    Rubycon capacitor
    Dimming Interface: 0-10V (1-10V, 10V PWM, RX)
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load
    Efficiency: 86%
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 100-700mA
    Output Power: 0.9W~20.4W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,FCC,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ERP,PSE,ROHS
    Warranty: 5 years（Rubycon capacitor）
    20W 100-700mA NFC CC 0/1-10V LED driver SE-20-100-700-W1A
    Download Manual


  • 20W 100-700mA NFC CC 0/1-10V tunable white LED driver SE-20-100-700-W2A
    SE-20-100-700-W2A
    Rubycon capacitor
    Dimming Interface: 0-10V (1-10V, 10V PWM, RX)
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load
    Efficiency: 86%
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 100-700mA
    Output Power: 0.9W~20.4W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,FCC,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ERP,PSE,ROHS
    Warranty: 5 years（Rubycon capacitor）
    20W 100-700mA NFC CC 0/1-10V tunable white LED driver SE-20-100-700-W2A
    Download Manual


  • 10W 350-700mA CC 0-10V Driver SE-10-350-700-W1AS
    SE-10-350-700-W1AS
    Rubycon capacitor
    Dimming Interface: 0-10V (1-10V, 10V PWM, RX)
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load),
    Efficiency: 75%(at full load)
    Fluctuation Level: No video flicker / High frequency exemption assessment level.
    Output Voltage: 2-12Vdc
    Output Current: 350-700mA
    Output Power: 0.7W-8.4W
    Dimming Range: 0~100%，down to 0.01%
    Certification: CCC,CB,CE,KC,EAC,RCM,UKCA,BIS
    Warranty: 5 years
    10W 350-700mA CC 0-10V Driver SE-10-350-700-W1AS
    Download Manual


  • 12W 100-400mA CC 0-10V Driver SE-12-100-400-W1AS
    SE-12-100-400-W1AS
    Rubycon capacitor
    Dimming Interface: 0-10V (1-10V, 10V PWM, RX)
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load),
    Efficiency: 82%(at full load)
    Fluctuation Level: No video flicker / High frequency exemption assessment level.
    Output Voltage: 9-42Vdc
    Output Current: 100-400mA
    Output Power: 0.9W-12W
    Dimming Range: 0~100%，down to 0.01%
    Certification: CCC,CB,CE,KC,EAC,RCM,UKCA,BIS,ROSH
    Warranty: 5 years
    12W 100-400mA CC 0-10V Driver SE-12-100-400-W1AS
    Download Manual


  • 12W 350-700mA CC 0-10V Driver SE-12-350-700-W1AS
    SE-12-350-700-W1AS
    Rubycon capacitor
    Dimming Interface: 0-10V (1-10V, 10V PWM, RX)
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load),
    Efficiency: 82%(at full load)
    Fluctuation Level: No video flicker / High frequency exemption assessment level.
    Output Voltage: 9-24Vdc
    Output Current: 350-700mA
    Output Power: 3.15W-12W
    Dimming Range: 0~100%，down to 0.01%
    Certification: CCC,CB,CE,KC,EAC,RCM,UKCA,BIS
    Warranty: 5 years
    12W 350-700mA CC 0-10V Driver SE-12-350-700-W1AS
    Download Manual


  • 30W 200-800mA NFC CC 0/1-10V LED driver SE-30-200-800-W1A
    SE-30-200-800-W1A
    Rubycon capacitor
    Dimming Interface: 0-10V (1-10V, 10V PWM, RX)
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load)
    Efficiency: 87%
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 200-800mA
    Output Power: 1.8W-30W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ERP,ROHS
    Warranty: 5 years(Rubycon capacitor)
    30W 200-800mA NFC CC 0/1-10V LED driver SE-30-200-800-W1A
    Download Manual


  • 40W 300-1050mA NFC CC 0/1-10V LED driver SE-40-300-1050-W1A
    SE-40-300-1050-W1A
    Rubycon capacitor
    Dimming Interface: 0-10V (1-10V, 10V PWM, RX)
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load)
    Efficiency: 88%
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 300-1050mA
    Output Power: 2.7W-40W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ERP,ROHS
    Warranty: 5 years(Rubycon capacitor)
    40W 300-1050mA NFC CC 0/1-10V LED driver SE-40-300-1050-W1A
    Download Manual


  • 30W 200-800mA NFC CC 0/1-10V tunable white LED driver SE-30-200-800-W2A
    SE-30-200-800-W2A
    Rubycon capacitor
    Dimming Interface: 0-10V (1-10V, 10V PWM, RX)
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load)
    Efficiency: 87%
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 200-800mA
    Output Power: 1.8W-30W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ERP,ROHS
    Warranty: 5 years(Rubycon capacitor)
    30W 200-800mA NFC CC 0/1-10V tunable white LED driver SE-30-200-800-W2A
    Download Manual


  • 40W 300-1050mA NFC CC 0/1-10V tunable white LED driver SE-40-300-1050-W2A
    SE-40-300-1050-W2A
    Rubycon capacitor
    Dimming Interface: 0-10V (1-10V, 10V PWM, RX)
    DC Voltage Range: 120-300Vdc
    AC Voltage Range: 100-240Vac
    Input Voltage: 115Vac/230Vac
    Power Factor:  PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load)
    Efficiency: 88%
    Fluctuation Level: No visible flicker/High frequency exemption level
    Output Voltage: 9-42Vdc
    Output Current: 300-1050mA
    Output Power: 2.7W-40W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ERP,ROHS
    Warranty: 5 years(Rubycon capacitor)
    40W 300-1050mA NFC CC 0/1-10V tunable white LED driver SE-40-300-1050-W2A
    Download Manual


  • 12W 100-450mA CC 0-10V tunable white LED driver SE-12-100-450-W2A
    SE-12-100-450-W2A
    Rubycon capacitor
    Dimming Interface: 0-10V(1-10V/10V PWM/RX)
    Input Voltage: 100-240Vac
    Power Factor:  PF＞0.95/115Vac, at full load PF＞0.9C/230Vac, at full load
    Efficiency: 82%, at full load
    Fluctuation Level: No video flicker / High frequency exemption assessment level.
    Output Voltage: 9-42Vdc
    Output Current: 100-450mA
    Output Power: 0.9W-12W
    Dimming Range: 0~100%, down to 0.01%
    Certification: CCC,TUV,CE,KC,RCM,ENEC,CB,BIS,EAC,UKCA,ROHS
    Warranty: 5 years
    12W 100-450mA CC 0-10V tunable white LED driver SE-12-100-450-W2A
    Download Manual


  • 0-10V Special for magnetic CC LED driver MT-100-400-D1A1
    MT-100-400-D1A1
    Dimming Interface: 0-10V/1-10V
    Input Voltage: 48Vdc±5% (No polarity)
    Efficiency: 92%
    Output Voltage: 10~42Vdc
    Output Current: 100-400mA
    Output Power: 1W-16.8W
    Dimming Range: 0~100%,down to 1%
    Certification: CE,ROHS,FCC
    Warranty: 5 years
    0-10V Special for magnetic CC LED driver MT-100-400-D1A1
    Download Manual


  • 0-10V Special for magnetic CC LED driver MT-350-700-D1A1
    MT-350-700-D1A1
    Dimming Interface: 0-10V/1-10V
    Input Voltage: 48Vdc±5% (No polarity)
    Efficiency: 95%
    Output Voltage: 10~42Vdc
    Output Current: 350-700mA
    Output Power: 3.5W-29.4W
    Dimming Range: 0~100%,down to 1%
    Certification: CE,ROHS,FCC
    Warranty: 5 years
    0-10V Special for magnetic CC LED driver MT-350-700-D1A1
    Download Manual


  • 10W 350-700mA CC 0-10V Driver SE-10-350-700-W1A
    SE-10-350-700-W1A
    Rubycon capacitor
    Dimming Interface: 0-10V (1-10V/10VPWM/RX) 0-10V Interface consumption: <0.05mA
    Input Voltage: 100-240Vac
    Power Factor:  PF>0.95/115Vac , PF>0.8/230Vac,at full load
    Efficiency: 75%
    Fluctuation Level: No video flicker / High frequency exemption assessment level.
    Output Voltage: 2-12Vdc
    Output Current: 350-700mA
    Output Power: 0.7W~8.4W
    Dimming Range: 0~100%, 0.01% dimming depth.
    Certification: BIS,CB,CE,UKCA,ROHS
    Warranty: 5 years
    10W 350-700mA CC 0-10V Driver SE-10-350-700-W1A
    Download Manual


  • 12W 350-700mA CC 0-10V Driver SE-12-350-700-W1A
    SE-12-350-700-W1A
    Rubycon capacitor
    Dimming Interface: 0-10V (1-10V/10VPWM/RX) 0-10V Interface consumption: <0.05mA
    Input Voltage: 100-240Vac
    Power Factor:  PF>0.97/115Vac , PF>0.85/230Vac, at full load
    Efficiency: 81%
    Fluctuation Level: No video flicker / High frequency exemption assessment level.
    Output Voltage: 10-24Vdc
    Output Current: 350-700mA
    Output Power: 3.5W~12W
    Dimming Range: 0~100%, 0.01% dimming depth.
    Certification: CCC,CB,CE,RCM,TUV,BIS,UKCA,ROHS
    Warranty: 5 years
    12W 350-700mA CC 0-10V Driver SE-12-350-700-W1A
    Download Manual

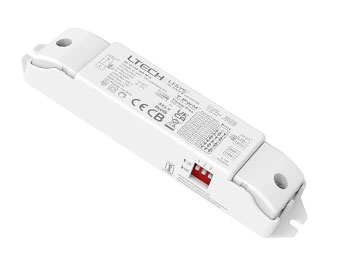

  • 12W 100-400mA CC 0-10V Driver SE-12-100-400-W1A
    SE-12-100-400-W1A
    Rubycon capacitor
    Dimming Interface: 0-10V (1-10V/10VPWM/RX) 0-10V Interface consumption: <0.05mA
    Input Voltage: 100-240Vac
    Power Factor:  PF>0.97/115Vac , PF>0.85/230Vac, at full load
    Efficiency: 82%
    Fluctuation Level: No video flicker / High frequency exemption assessment level.
    Output Voltage: 10-42Vdc
    Output Current: 100-400mA
    Output Power: 1W~12W
    Dimming Range: 0~100%, 0.01% dimming depth.
    Certification: BIS,CB,CE,UKCA,ROHS
    Warranty: 5 years
    12W 100-400mA CC 0-10V Driver SE-12-100-400-W1A
    Download Manual


  • Total 1 Page 17 Records


About Us

Product Center

Follow us

Contact Us

  • +86 756 620 8255
  • +86 756 620 8836
  • (Monday to Friday 8:30-18:00)
Legal Disclaimer | Privacy protection | Contact us | Site map
COPYRIGHT © 2003-2024 LTECH. ALL RIGHT RESERVED.
    粤ICP备10035980号    粤公网安备 44049002000101号
