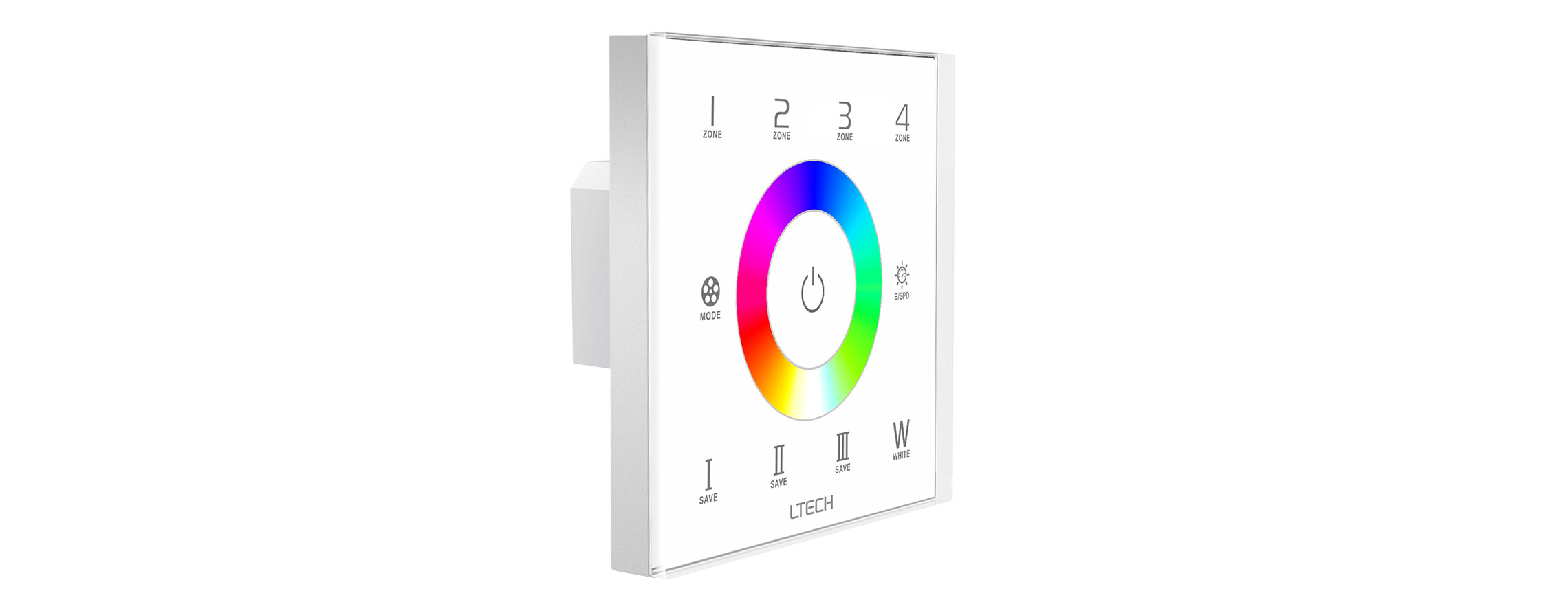

EX8S RGBW Touch Panel (4 zones) |
|
| Input Voltage:: | 100-240Vac |
| Output Signal: | RF 2.4GHz, DMX512 |
| Control mode: | Synchronous control |
| Working Temp.: | -30℃～55℃ |
| Dimensions: | L86×W86×H36(mm) |
| Package Size: | L113×W112×H50(mm) |
| Weight(G.W.): | 225g |
F4-3A CV Receiver |
|
| Input Voltage: | 5~24Vdc |
| Current Load: | 3A × 4CH Max. 12A |
| Max Output Power: | (0~15W...72W)×4CH Max. 288W |
| Working Temp.: | -30℃～55℃ |
| Dimensions: | L125×W33×H20(mm) |
| Package Size: | L127×W35×H24mm |
| Weight(G.W.): | 60g |
| Wireless Signal: | 2.4GHz |
F4-5A CV Receiver |
|
| Input Voltage: | 5~24Vdc |
| Current Load: | 5A × 4CH Max. 20A |
| Max Output Power: | (0~25W...120W)×4CH Max. 480W |
| Working Temp.: | -30℃～55℃ |
| Dimensions: | L175×W44×H30(mm) |
| Package Size: | L178×W48×H33mm |
| Weight(G.W.): | 150g |
| Wireless Signal: | 2.4GHz |
F4-CC CC Receiver |
|
| Wireless Signal: | 2.4GHz |
| Input Voltage: | 12-48Vdc |
| Output Voltage: | 3~46Vdc |
| Output Current: | CC 350/700/1050mA×4CH |
| Output Power: | (1.05W~48.3W)×4CH Max 193.2W |
| Working Temp.: | -30℃～55℃ |
| Dimensions: | L175×W44×H30mm |
| Package Size: | L178×W48×H33mm |
| Weight(G.W.): | 165g |
