LTECH various LED color-changing controllers can essentially manage all IC-driven LED functions on the market, offering enhanced capabilities and easier operation. They feature built-in effects like constant multicolor, synchronized flashing, synchronized fading, flowing lights, chasing lights, gradient flow, meteor showers, and trailing lights. Additionally, you can customize various scene modes to create magical color displays! Using the RF remote controller, you can select various dynamic lighting effects, set the number of controllable pixels, adjust change speed and brightness, alter change direction, modify RGB sequence, choose IC type, and store/play custom scenes.
The LED digital controller supports the DMX512/1990 international standard protocol interface and features a DMX management mode. Using a DMX512 console, you can access the built-in functions of the LED color controller to select change modes, change speeds, brightness, major change categories, change directions, and more.

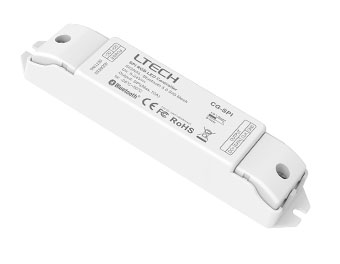

| Wireless Protocol Type | Bluetooth 5.0 SIG Mesh |
| Inut Voltage | 5-24V |
| Output Signal | SPI |
| Channel of switch | Single Channel |
| Working Temperature | -25°C~50°C |
| Dimensions | 135L×30W×20H |
| Package Size | 136.5×32×22(L×W×H) |
| Weight (G.W) | 52g±5g |

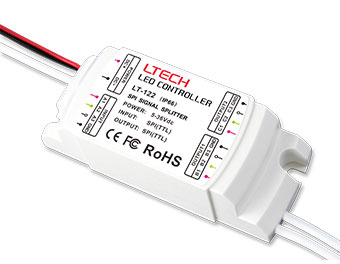

| Input signal | SPI(TTL) |
| Ouput signal | 2CH SPI(TTL) |
| Input power | DC5V-DC36V |
| waterproof level | IP67 |
| working temperature | -30℃~55℃ |
| Dimension | L92×W37×H30mm |
| Package Size | L123×W43×H42mm |
| Weight (G.W) | 80g |
| Working voltage | DC12V |
| Output signal channels | 16 Channels |
| Loading capability per channel | 512-1920 pixels/channel |
| Off-line storage media | SD memory card |
| SD card capability | 2GB Max. |
| Grey level | Max. 65536 scale |
| Refreshing frequency | 60Hz~3000Hz |
| Input power: | 5~24VDC |
| Input signal: | DMX512 |
| Output signal: | SPI(TTL) |
| Function Mode: | 540 modes |
| Control Quantity: | 1024 pixels |
| Virtual pixel : | 1-6 times, Max 1024 pixel |
| Working Temperature | -30℃~65℃ |
| Dimensions | L175×W44×H30(mm) |
| Weight(G.W) | 130g |
| Input power: | 5~24VDC |
| Input signal: | DMX512 |
| Output signal: | SPI(TTL) |
| Function Mode: | 16 modes |
| Control Quantity: | 1024 pixels |
| Virtual pixel : | 1-6 times, Max 1024 pixel |
| Working Temperature | -30℃~65℃ |
| Dimensions | L175×W44×H30(mm) |
| Weight(G.W) | 130g |
| Input voltage | DC5V~DC24V |
| Input signal | DMX512 |
| Compatible IC | TM1803 TM1804 TM1809 TM1812 UCS1903 UCS1909 UCS1912 UCS2903 UCS2909 UCS2912 WS2811 WS2812B Driving IC |
| Decoder channels | 512 DMX CH/unit |
| DMX512 socket: | XLR-3 Green terminal |
| Dimming range | 0~100% |
| working temperature | -30℃~65℃ |
| Dimension | L125×W52×H40mm |
| Package Size | L135×W70×H50mm |
| Weight (G.W) | 300g |
